Product Description

ERW Welded Pipe

Resistance welded pipe ERW is formed by hot rolled coil through forming machine. The skin effect and proximity effect of the high frequency current are used to heat and melt the edges of the tube blank. Pressure welding is carried out under the action of squeeze rollers. Realize production. The production process of welded steel pipes is simple, the production efficiency is high, the varieties and specifications are many, and the equipment is few, but the general strength is lower than that of seamless steel pipes.


Product TypeERW Welded Pipe
SizeOuter DiameterSeamless: 17-914mm 3/8"-36"Welding: 21.3mm-3620mm
Round tube: 1/2"-10"Square Tube / Rectangular tube: 15x15-400x600mm
Wall ThicknessSeamless: 1.25mm-50mmWelding: 1.65mm-65mm
SCH100, SCH120, SCH140, SCH160 XXS, SCH80, SCH10, SCH20, SCH30 STD, SCH40, SCH60 XS
Length1m-12m or as customer's request
EndsPlain end / Beveled, Protected by plastic caps on both ends, Cut quare,grooved,threaded and coupling, etc.
TechniqueHot Rolled Or Cold Rolled
StandardAPI A106 GR.B, A53 Gr.B Seamless Steel Pipe / ASTM A106 Gr.B, A53 Gr.B Steel Tube, AP175-79, DIN2I5L
ASTM A106 Gr.B, ASTM A53 Gr.B,ASTM A179/A192/A213/A210 /370 WP91, WP11, WP22 DIN17440, DIN2448, JISG3452-54
MaterialAPI5L, Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53 Gr.A&B, ASTM A106 Gr.A&B, ASTM A135
ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2, SY/T5037, SY/T5040STP410, STP42, ASTM A252
Surface TreatmentBare, Painting Black, Varnished, Galvanized, Anti-Corrosion 3pe Pp/Ep/Fbe Coating, Transparent Oil, Epoxy Coating, etc.
ShapesRound, Square, Rectagular, Oval, Special Shape according to csutomer's requirement
Technical MethodsHot-rolled / Cold-drawn / Hot-expanded
Testing MethodsPressure test,Flaw detection,Eddy current testing,
Hydro static testing or Ultrasonic examination and also with chemical andphysical property inspection,
Chemical Component Analysis, Mechanical Properties, Exterior Size Inspection, hydraulic testing etc.
PackagingSmall pipes in bundles with strong steel strips,large pieces in loose;
Covered with plastic woven bags;Wooden cases;Suitable forlifting operation;
Loaded in 20ft 40ft or 45ft container or in bulk; Also according to customer's requests

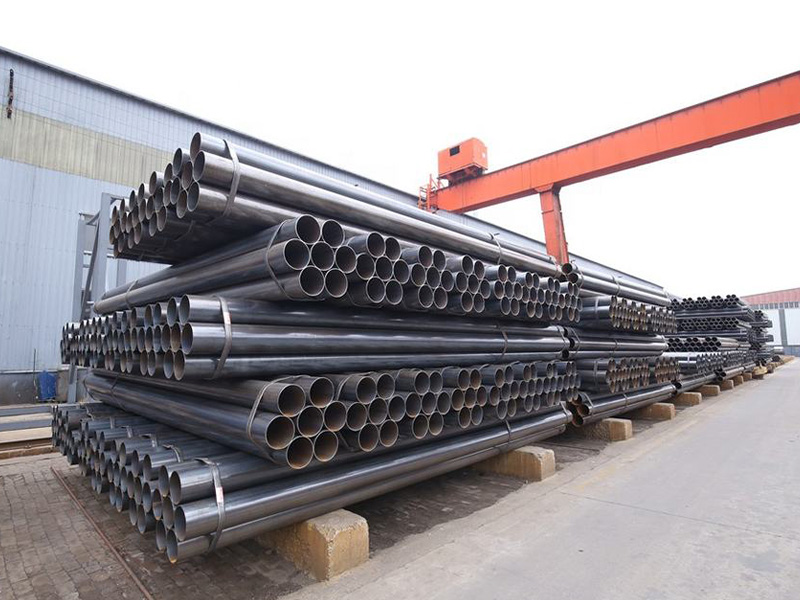

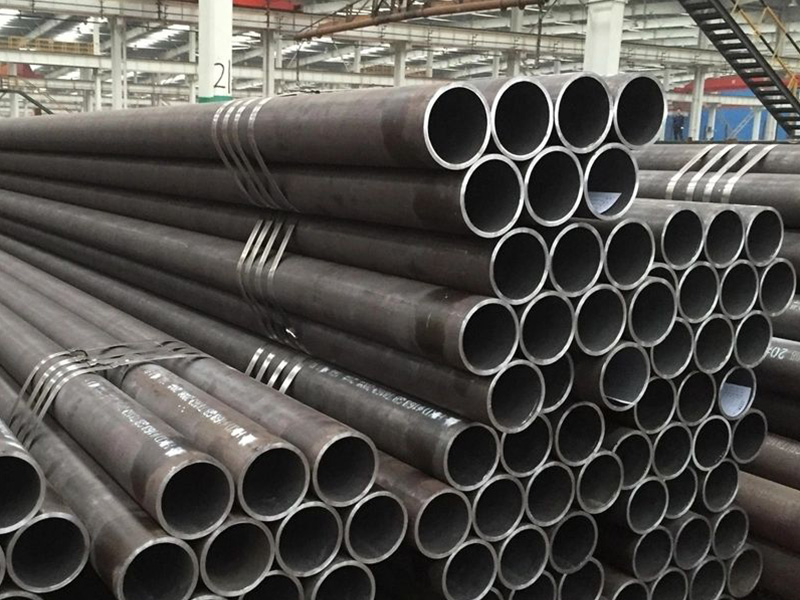

Product Show

ERW Welded Pipe



Product Packaging

ERW Welded Pipe

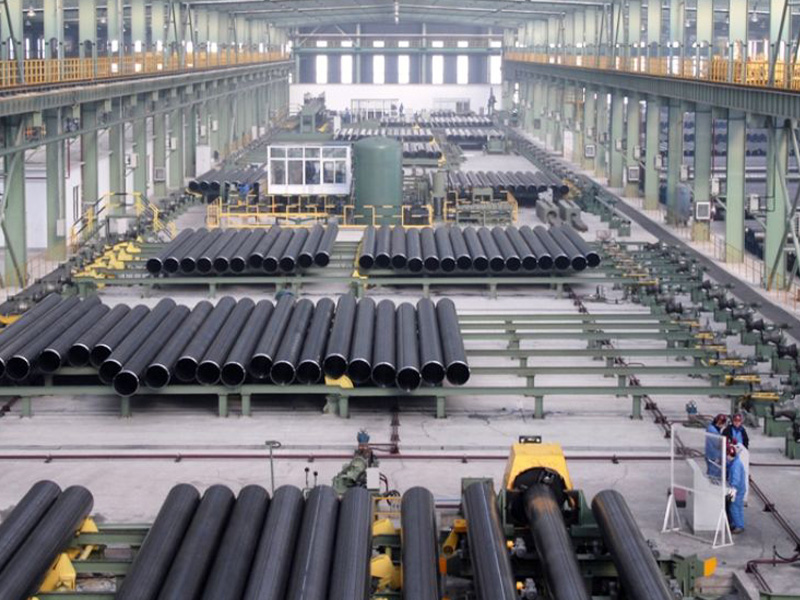

FACTORY
