Alloy Steel Wire Rods 16MnCr5/20MnCr5/SCM 415H/SCM 420H/SAE8620/SAE4135/SAE4140

Phone : +86 18365985565

Email : dale@sdjwsteel.com

Wechat : +86 18365985565

Whatsapp : +86 18365985565

Product Description

Alloy Steel Wire Rods 16MnCr5/20MnCr5/SCM 415H/SCM 420H/SAE8620/SAE4135/SAE4140

Alloy Steel Wire Rods – for heat treating applications
Grade Dimension	Chemical	Composition					UTS	%RA	Applications
	Scope(mm)	%C	%Mn	%Si	%P	%S	(Mpa) Max	Min
EN18P	5.2-22	0.38-0.44	0.65-0.90	0.15-0.25	0.15-0.25	0.015-Max	756-Max	50	Forging
42CrMo4	5.2-22	0.38-0.45	0.60-0.90	0.15-0.25	0.15-0.25	0.015-Max	500-600	50
16MnCr5	5.2-22	0.14-0.19	1.00-1.30	0.15-0.35	0.025-Max	0.015-Max	500-600	50
20MnCr5	5.2-22	0.17-0.22	1.10-1.40	0.15-0.25	0.020-Max	0.030-Max	550-650	50
SCM415H	5.2-22	0.13-0.18	0.60-0.90	0.15-0.25	0.025-Max	0.025-Max	500-600	50	Case hardening ofautomobile & machines
SCM420H	5.2-22	0.18-0.23	0.60-0.85	0.15-0.25	0.025-Max	0.030-Max	570-Max	50	Parts like connecting rod
SAE8620	5.2-22	0.18-0.23	0.70-0.90	0.15-0.30	0.025-Max	0.030-Max	500-600	50	Case hardening ofautomobile and machinesparts like gear
SAE4135	5.2-22	0.33-0.38	0.70-0.90	0.15-0.30	0.03-Max	0.030-Max	932-1080	50	-
SAE4140	5.2-22	0.38-0.43	0.75-1.00	0.15-0.30	0.03-Max	0.030-Max	932-1030	40	For high tensile fasteners
SCM435	5.2-22	0.33-0.38	0.60-0.90	0.15-0.25	0.025-Max	0.015-Max	932-1080	50	-

Product name	Wire rod
Materials	Q195,Q235,SAE1006B,SAE1008B,SAE1010B,SAE1012B,SAE1018B,etc.
Technique	Hot rolled
Wire Gauge	5.5-18mm
Certificate	SGS BV
Length	In coils or as customer's requirement.
Place of origin	China mainland
Package	In coil and load in container,if large quantity,by bulk vessel or as customer's request
Application	machinery parts,manufacturing industry,metal tools and others
Brands	SSQY
Coil weight	1.8-2.1mt
Standard	AISI,ASTM,BS,DIN,GB,JIS
Payment terms	TT or LC at sight
Deliver Conditions	Bulk vessel or container
Deliver Time	In 15 days after receipt of L/C or TT

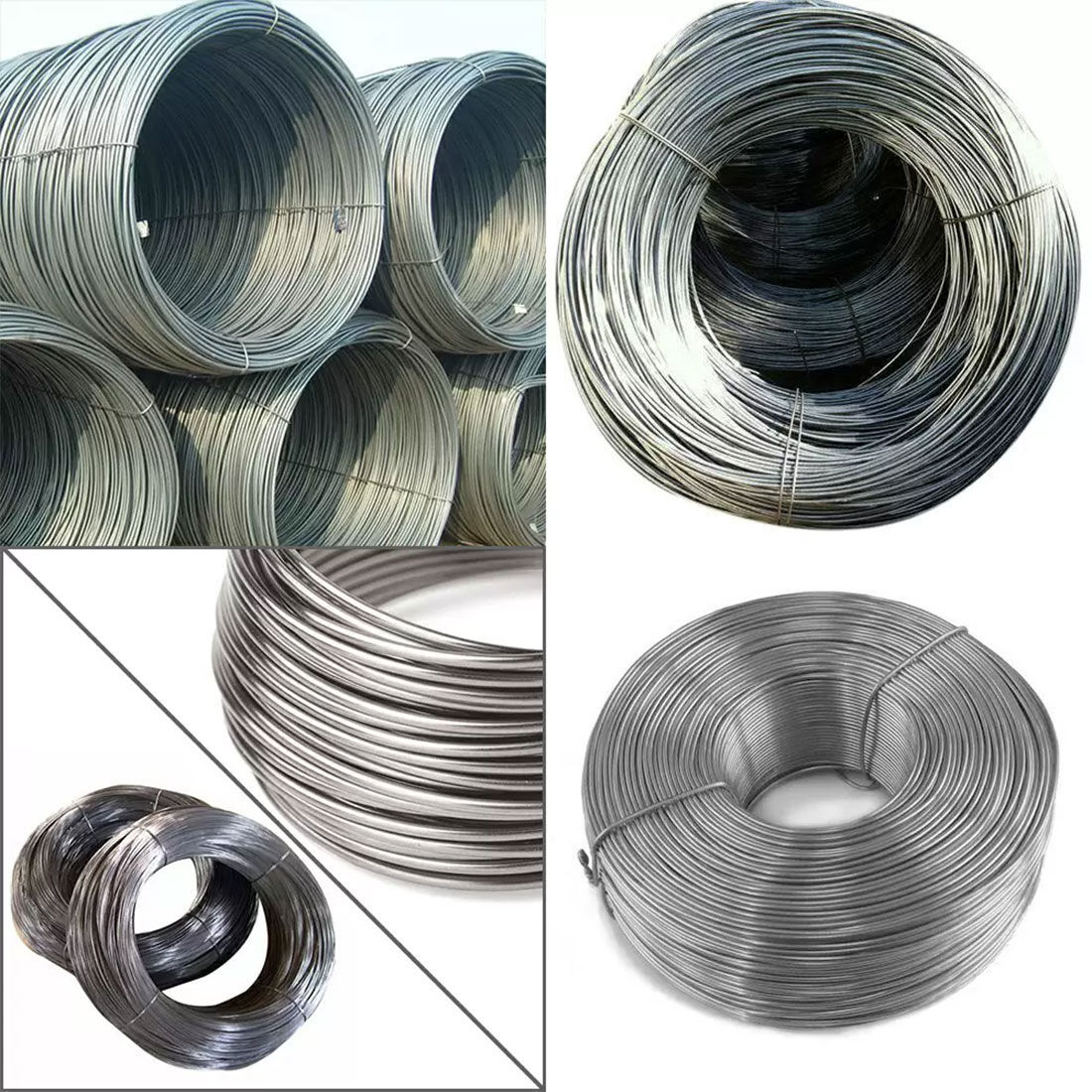

Product Show

Alloy Steel Wire Rods 16MnCr5/20MnCr5/SCM 415H/SCM 420H/SAE8620/SAE4135/SAE4140

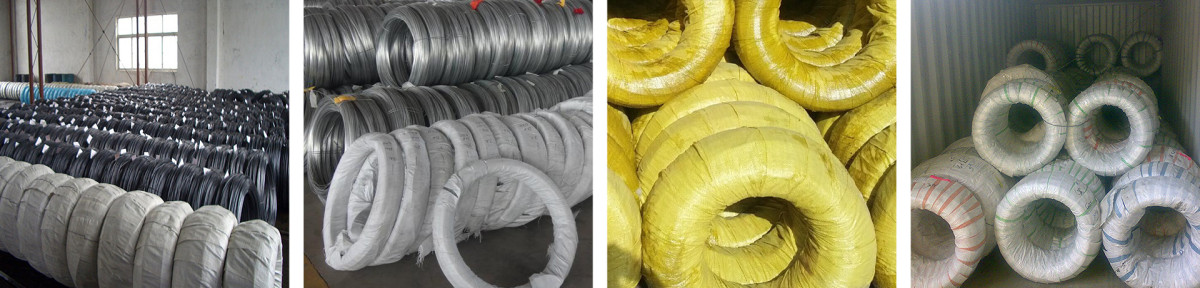

Product Packaging

Alloy Steel Wire Rods 16MnCr5/20MnCr5/SCM 415H/SCM 420H/SAE8620/SAE4135/SAE4140
